AirPlay vs Google Cast vs DLNA: who holds the queue

The useful question is not which of these is best. It is where the playback state lives — the queue, the position, the transport — because that decides what breaks when a device leaves the room.

Three answers. Google Cast keeps the state on the sender and gives the receiver a media URL to fetch, so the speaker does the decoding and your machine has to keep serving your own files. AirPlay keeps the state on the sender too, but the sender is in the audio path: an app hands a URL to a player running locally and the audio is streamed to the speaker, so the source format stops mattering and the sending device works throughout. UPnP AV, which DLNA certified, has no playlist at all — a control point sets one URI on a renderer and gets out of the way — which is why the current track survives your phone locking and the next one does not. OpenHome fixes exactly that by moving the track list onto the renderer.

Why push versus pull is the wrong first cut

Almost every comparison of these three organises itself around push against pull: AirPlay pushes audio, Cast pulls it. As a first approximation for those two it is fine. Applied to the third it is simply false, and the specification is unambiguous about why.

The UPnP AV Architecture document sets out the roles and then explicitly parameterises the transfer. Its worked examples are headed “Isochronous-Push (IEC61883/IEEE1394)” and “Asynchronous-Pull (e.g. HTTP GET)” — two named configurations of the same architecture, differing in which device returns the transport instance and therefore which one controls the flow. UPnP AV does not push or pull. It specifies both and lets the two devices negotiate.

So push and pull are a property of a configuration, not of a protocol, and a comparison built on them collapses at the third column. Where the playback state lives does not collapse, and it is also the axis that predicts the things people actually notice.

Google Cast: state on the sender, media somewhere else

Google’s documentation splits the work in two. The Sender “plays the role of controller for the Cast session”, and the Receiver is the application on the device “responsible for responding to Sender commands and for conveying streaming content” to it. The media object the sender fills in carries a contentId that is “typically the URL of the media” and a contentType that is “the content MIME type” — a description of where the audio is and what kind it is, rather than the audio.

Two consequences matter for the comparison, and the mechanism in full is a separate article.

The receiver decodes, so the receiver’s codec list is a hard constraint. Google publishes it for its audio devices: FLAC to 96 kHz/24-bit, MP3, LC-AAC, HE-AAC, Opus, Vorbis and WAV. ALAC is not on it.

The sender holds the queue and stays connected as controller. Nothing on the device knows what track four is.

Discovery is DNS-based Service Discovery over multicast DNS — Google’s own troubleshooting page points developers at the _googlecast._tcp.local service record — with the requirement that “the sender device and the Cast-enabled devices device must be connected to the same WiFi network”.

AirPlay: an output route, with the sender in the data path

AirPlay is the one where the public record is thinnest, so it is worth being precise about what is known and from where.

Apple describes AirPlay as delivering “a seamless audio streaming experience to one or more devices”, and the developer-facing shape of it is telling. The app’s job is to “identify a URL that points to local or cloud content that you want to play”, build a player item from it, and start playback — on the sending device. The player runs on the sender; AirPlay is a route the system audio takes afterwards. That is a different arrangement from Cast, where the URL is handed across to the speaker.

Apple also documents what the newer buffering behaviour does: with the standard players “you automatically get enhanced audio buffering when it is routed to AirPlay”, and “the audio streams faster than real-time playback speed in order to minimize playback interruptions”. Running ahead of real time is what makes multi-room practical, and Apple states the multi-room case plainly — “streaming to one or more HomePods and AirPlay-compatible speakers in perfect sync”.

Three things follow, and one boundary.

• The source format stops mattering at the sender. The decode happens before the audio leaves, so an ALAC library that will not cast will AirPlay without complaint. This is the single biggest practical difference between the two for anyone with an Apple-formatted collection, and it is the other half of the FLAC and ALAC decision.
• The sender works for the whole session, and the state is the sender’s player. Quit the app and there is nothing left holding the queue.
• Buffering ahead of real time trades responsiveness for robustness. Filling a large buffer means the audio you hear was decided some time ago, which is fine for music and is the reason latency-sensitive uses need a different mode.

The boundary: AirPlay’s protocol itself is not public. Third-party AirPlay audio hardware is licensed through Apple’s MFi programme, and Apple does not publish the wire format, the transport, the codec negotiation or the clock synchronisation. Everything above is behaviour Apple documents. This article makes no claim about how AirPlay works underneath, because there is no citable statement of it, and reverse-engineered implementations — however good — are not Apple saying so.

UPnP AV and DLNA: three roles, and no playlist

Be precise here, because the whole reputation of “DLNA” rests on a confusion.

UPnP AV is the architecture. It defines three roles, and the specification calls the arrangement the 3-Box model:

• A MediaServer publishes content. It “is used to locate content that is available via the home network”, and it contains a ContentDirectory service, a ConnectionManager service, and an optional AVTransport service “depending on the supported transfer protocols”.
• A MediaRenderer plays it. It “is used to render (e.g. display and/or listen to) content obtained from the home network”, and its main feature is that it “allows the control point to control how content is rendered” — volume, mute and so on, through a RenderingControl service.
• A control point is the application you hold. It browses the server, checks formats, and tells the renderer what to play.

DLNA was a certification programme built on top of that. A DLNA logo is a statement about a device having passed somebody’s test suite; it is not a protocol with its own semantics. Which is why “DLNA supports FLAC” is not a well-formed claim: the specification says format support is advertised per device, through ConnectionManager::GetProtocolInfo(), which “allows a control point to enumerate the transfer protocols and data formats that are supported by the MediaRenderer”. Two DLNA-certified renderers can legitimately disagree about FLAC, and one of them can legitimately not implement AVTransport at all.

Now the part that is almost always reported wrongly. The specification is explicit that the control point is not in the data path:

The control point uses UPnP to initialize and configure both devices so that the desired content is transferred from one device to the other. However, since the content is transferred using an “out-of-band” transfer protocol, the control point is not directly involved in the actual transfer of the content. The control point configures the devices as needed, triggers the flow of content, then gets out of the way. Thus, after the transfer has begun, the control point can be disconnected without disrupting the flow of content.

So the folklore — “UPnP stops when your phone sleeps” — is half right, and the half it gets wrong is the interesting half. The current track survives. What does not survive is the next one, because UPnP AV has no playlist: the control point calls AVTransport::SetAVTransportURI() with one URI and then AVTransport::Play(), and repeats that for every track. Nothing on the network knows what comes after the file currently playing. The renderer finishes and stops, not because anything failed but because the only thing that knew the order has gone.

That minimalism is also the design’s strength. Any of the three roles can be a different box, the transfer protocol is deliberately outside the specification, and a great deal of it is optional — including PrepareForConnection(), where the specification tells a control point to “fall-back” and assume InstanceID=0 when a device has not implemented it. This is why no two DLNA devices behave identically, and why any sentence beginning “DLNA does” needs a device name in it.

OpenHome: the playlist moves onto the speaker

OpenHome is a set of UPnP services designed to fix precisely that gap, and its av.openhome.org:Playlist:1 service is the whole idea in one interface.

The service “provides access to a list of tracks, which can be played in sequence, starting at any point”, with shuffle and repeat modes. The state variables live on the renderer: the transport state, Repeat, Shuffle, the current track Id, an IdArray of every track in the list, a ProtocolInfo listing what the device can play, and TracksMax — “the maximum number of tracks a playlist can contain. Set on startup and invariant thereafter.” A controller adds music with Insert, which “adds the given uri and metadata as a new track to the playlist”.

The clearest evidence that the state genuinely belongs to the device is a warning in the documentation for one of its own actions. SeekIndex is discouraged because “it results in an unpredictable track being played in the presence of multiple control points” — the specification is designed around several interchangeable controllers coming and going while the renderer keeps the truth. That is the opposite of the Cast and AirPlay arrangement, where the controller is the truth.

Practically: a streamer that speaks OpenHome plays an album through with your phone in your pocket and switched off. A streamer that speaks only standard UPnP AV plays one track. If you have ever wondered why two apparently similar network players behave differently here, this is usually it.

Where the playback state lives

The queue, the position, and what is lost when the controller leaves

1. Google Cast

   On the sender

   Receiver holds one media item

   The sender owns the queue and issues a load request per track. Controller leaves → the loaded item finishes if its URL is still reachable, then nothing. If the URL was served by the controller’s own machine, not even that.

2. AirPlay

   On the sender

   Receiver holds a buffer of audio

   The player is on the sending device and the speaker is an output. Controller leaves → the buffer drains and playback ends. The sender is in the data path, so it cannot leave in any sense.

3. UPnP AV, standard

   Nowhere

   Renderer holds one URI

   No playlist exists in the specification. Controller leaves → the current transfer continues to the end, then stops, because the order lived only in the control point.

4. UPnP AV plus OpenHome

   On the renderer

   Renderer holds the full track list

   Track list, shuffle, repeat and position are device state. Controller leaves → nothing changes, and another controller can pick up the same session and see the same truth.

The comparison

	Google Cast	AirPlay	UPnP AV / DLNA	OpenHome
Architecture in one line	Sender controls, receiver fetches a media URL	App plays on the sender; speaker is an output route	Control point configures a server and a renderer, then leaves	UPnP AV with the track list moved onto the renderer
Who holds the media	Anywhere reachable by URL	Wherever the sending app can read it	A MediaServer, which can be any box	A MediaServer, or any URI the device can fetch
Who moves the audio	The receiver pulls it	The sender streams it	Whichever the two devices negotiated — the spec defines push and pull	As UPnP AV
Where the playback state lives	The sender	The sender’s player	Nowhere; one URI at a time	The renderer
Controller disconnects mid-track	Current item continues if its URL survives	Playback ends when the buffer drains	Current transfer continues to the end	Nothing changes
Advancing to the next track needs	The sender	The sender	The control point	Nothing external
Machine holding your files sleeps	Playback stops if that machine served the URL	Playback stops; it was the source	Playback stops if that machine was the MediaServer	Playback stops if that machine was the MediaServer
Who decodes	The receiver	The sender	The renderer	The renderer
So the source format	Must be on the receiver’s list — no ALAC	Stops mattering once it leaves the sender	Depends on the device, via GetProtocolInfo()	Depends on the device, via ProtocolInfo
Discovery	DNS-SD over mDNS, _googlecast._tcp	Bonjour, Apple’s mDNS implementation	SSDP; servers and renderers announce separately	As UPnP AV
Multi-room model	Google speaker groups	AirPlay 2, within Apple’s ecosystem	Not in the specification	Not in the Playlist service
Specification available	Public SDK reference	Sender API documented; protocol licensed and not public	Published specification	Published service reference
In Digr today	Yes — the only one	No. Roadmap, no date	No. Roadmap, no date	No. Roadmap, no date

One row is the same answer three times, and it is worth saying out loud before the next section takes the other one apart.

“Machine holding your files sleeps.” Whoever is serving the bytes has to be awake, whatever the protocol. The only escape is OpenHome’s, and it is partial: the controller becomes optional, the server does not.

Who decodes, and why that decides whether your format matters

This is the row worth its own section, because it is where a working setup and a broken one diverge — and because the usual way of stating it, as a per-protocol list of supported codecs, is wrong for two of the three.

The same ALAC file, offered to each protocol

Google Cast The receiver decodes

Constraint A fixed, published list per device family. Google names FLAC to 96 kHz/24-bit, MP3, LC-AAC, HE-AAC, Opus, Vorbis and WAV for its audio devices.

ALAC Not on the list. The load fails; nothing degrades, because nothing is converting.

So the answer is knowable in advance — you can check your library against a document before you buy a speaker.

AirPlay The sender decodes

Constraint Whatever the sending device can play. The decode happens before the audio leaves, so the receiver never sees the container.

ALAC Plays, on Apple hardware, without anybody thinking about it.

So codec support is not a property of the protocol at all — it is a property of the machine in your hand.

UPnP AV / DLNA The renderer decodes

Constraint Whatever that one device advertises. The specification provides the question — ConnectionManager::GetProtocolInfo() — and no answer.

ALAC Depends entirely on the renderer, and two certified devices may legitimately disagree.

So a sentence like “DLNA supports FLAC” is malformed. Only “this renderer advertises FLAC” means anything.

The practical upshot for a local library: if your collection is ALAC and your speakers are Google, one of the two has to change. Converting the library is the usual answer, which is why the FLAC and ALAC decision is worth making with the speakers in mind rather than after buying them.

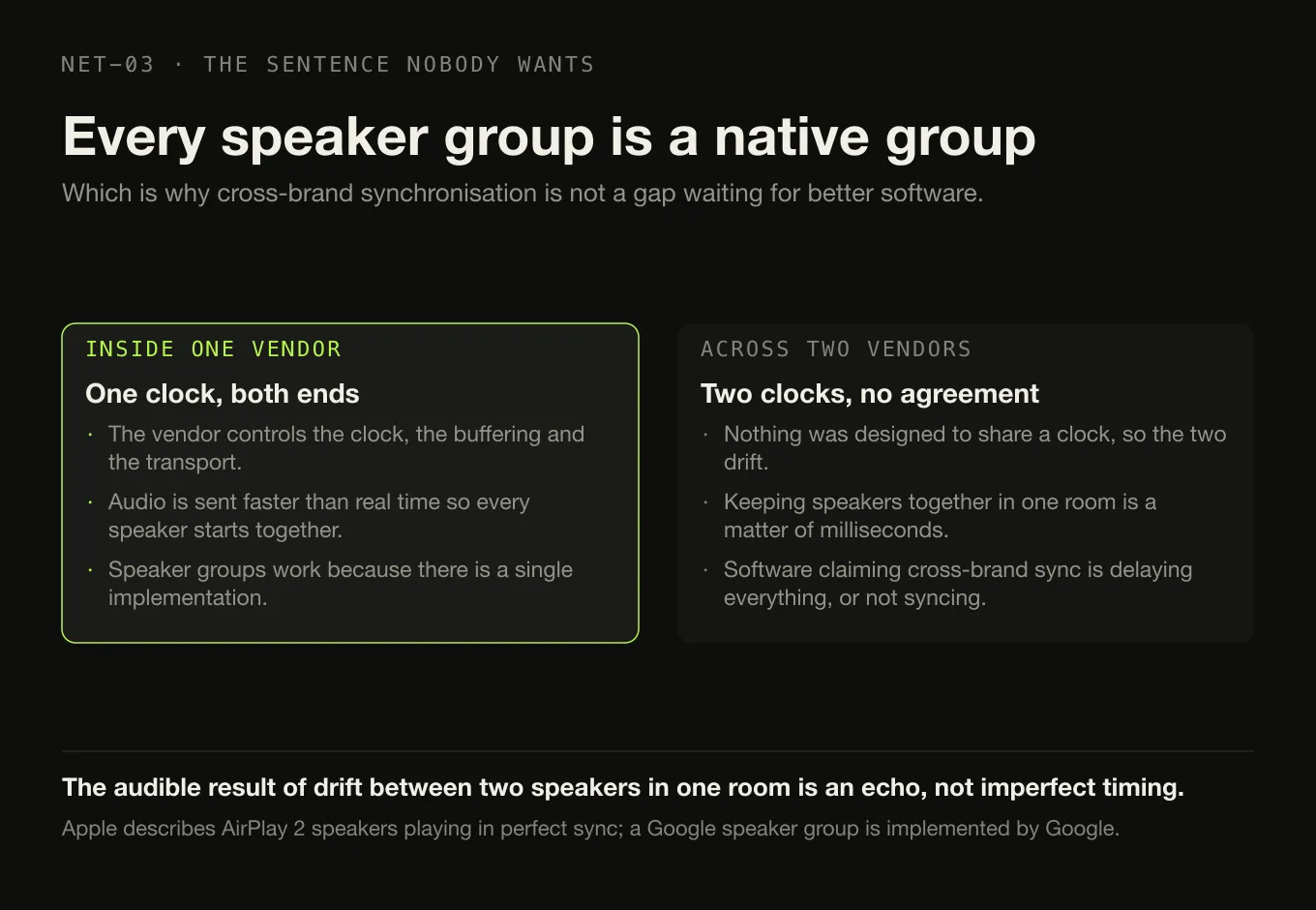

Multi-room, and the sentence nobody wants to hear

Every ecosystem offers speaker groups, and every one of them is a native group: a Google speaker group is implemented by Google, an AirPlay 2 multi-room set by Apple. Within one vendor’s world synchronisation works because that vendor controls the clock, the buffering and the transport at both ends — which is exactly what Apple is describing when it says audio streams faster than real time to speakers playing “in perfect sync”.

Across ecosystems it does not work, and this is not a gap waiting for better software. Keeping two speakers audibly together in one room is a matter of milliseconds. Two protocols that were never designed to share a clock will drift, and the audible result of drift between speakers in the same room is an echo, not imperfect timing. Software that claims cross-brand sync is generally either inserting a large delay everywhere or not synchronising at all.

What is documented, and what is not

A comparison table can look like test results, so it is worth saying exactly what kind of evidence is behind each column.

Protocol	Evidence class
Google Cast	Public SDK documentation. Roles, media object, session steps, codec list and discovery record all quoted from Google
UPnP AV	Published specification. Roles, services, actions, both transfer configurations and the control-point-disconnect behaviour all quoted
OpenHome	Public service reference. State variables and actions quoted
AirPlay	Partial. Apple documents the sender-side API and the behaviour; the protocol is licensed and not published. Behavioural claims only

No hardware was tested for this article. No Chromecast, HomePod, network streamer or DLNA renderer was instrumented, no packets were captured, and nothing was timed. Every claim here is either quoted from a specification or from vendor documentation, or derived in the text from something that was — and where it is derived, the derivation is shown. There are no latency figures because none was measured and neither Apple nor Google publishes one.

Where Digr is, and what is planned

Digr speaks Google Cast, and nothing else. Chromecasts, Google Home speakers and Google Cast speaker groups are discovered over multicast DNS with nothing to configure, and a local media server streams the original file to the device with correct MIME types and Range support, each track behind an unguessable token so paths never appear in a URL. While casting, the local engine is silenced but still owns the queue, shuffle and repeat — so Digr sits in the first column of the table above, deliberately and completely.

AirPlay output, DLNA and UPnP output, OpenHome support and native ecosystem speaker groups are all named roadmap items in the longer-term section, with no dates and with the product tier not yet decided. The reason there are no dates is stated rather than implied: each is a protocol implementation with its own certification, discovery and licensing questions to settle first, and AirPlay’s is the licensing one this article has already had to work around.

Cross-brand synchronised playback is not planned, ever. It is on the permanent not-planned list with the reasoning beside it: Digr will support each ecosystem’s own speaker groups, and will not invent a cross-brand sync layer over protocols that were never designed to keep time with each other and then call the result synchronised. The same list carries the refusal to print a lossless badge over a wireless chain whose final stage cannot be verified — which is the honest position for any of the four columns above.

The one route to multi-room that Digr would control end to end — a small Digr endpoint another Digr could stream to — is filed as research rather than plan, because the transport, the clock synchronisation and the discovery are all open questions. What exists today is the list to judge it by.

Choosing by architecture

• You want the fewest moving parts and you own Google or Nest speakers. Cast. Keep the library in a format on the receiver’s list, which in practice means FLAC rather than ALAC.
• You are inside Apple’s ecosystem and your files are ALAC. AirPlay, and accept that the sending device is in the audio path for the whole session.
• You own or want a hi-fi streamer and you resent your phone being load-bearing. Check for OpenHome as well as UPnP. It is the difference between an album that plays through and a track that plays.
• You want one library reachable from several ecosystems. Run a UPnP MediaServer for the devices that speak it and the native protocol for the ones that do not. No single protocol reaches everything, and the products that claim to are a stack of bridges.
• You want everything in sync across brands. Buy one brand. That is the whole answer, and it is also the practical route through the same problem.

The mistake to avoid is choosing speakers first and discovering the architecture afterwards. The protocol determines whether your files play at all, whether they keep playing when you leave, and whether the machine with your library has to stay awake — and none of that is on the box. What happens after the bytes reach the speaker is a separate chain with its own failure modes.

The short version

• Push versus pull is the wrong axis. UPnP AV specifies both. Ask where the playback state lives instead.
• Cast: state on the sender, receiver fetches a URL and decodes. Your format must be on its list.
• AirPlay: state on the sender, sender streams the audio. Format stops mattering; the sender never gets to leave.
• UPnP AV / DLNA: no playlist. Current track survives the controller leaving; the next one does not. DLNA is certification, not a protocol.
• OpenHome: the track list lives on the renderer, so the controller becomes optional.
• Whoever serves the files has to stay awake, in all four.
• Cross-brand sync is not a software problem you can solve. One ecosystem, or accept an echo.
• Digr: Google Cast only. The other three are roadmap with no dates; cross-brand sync is never.

Sources

• UPnP AV Architecture:2, Standardized DCP, 31 March 2013 — UPnP Forum — the 3-Box model; the MediaServer containing “a ContentDirectory service, a ConnectionManager service, and an optional AVTransport service (depending on the supported transfer protocols)”; the MediaRenderer “used to render (e.g. display and/or listen to) content obtained from the home network”; ConnectionManager::GetProtocolInfo() enumerating “the transfer protocols and data formats that are supported by the MediaRenderer”; the out-of-band transfer and that “after the transfer has begun, the control point can be disconnected without disrupting the flow of content”; the SetAVTransportURI() then Play() sequence, one URI at a time; and the Isochronous-Push and Asynchronous-Pull configurations that retire the push-versus-pull framing
• OpenHome — Playlist service (av.openhome.org:Playlist:1) — the service that “provides access to a list of tracks, which can be played in sequence, starting at any point”; the device-side state variables including IdArray and TracksMax, “the maximum number of tracks a playlist can contain, set on startup and invariant thereafter”; Insert, which “adds the given uri and metadata as a new track to the playlist”; and the SeekIndex warning about “the presence of multiple control points”
• Tune up your AirPlay audio experience — Apple, WWDC23 — AirPlay delivering “a seamless audio streaming experience to one or more devices”; streaming “to one or more HomePods and AirPlay-compatible speakers in perfect sync”; the app’s job being to “identify a URL that points to local or cloud content” and hand it to a player on the sending device; enhanced audio buffering arriving automatically “when it is routed to AirPlay”; and audio that “streams faster than real-time playback speed in order to minimize playback interruptions”
• Google Cast — Overview and MediaInformation reference — the Sender as “controller for the Cast session”, the Receiver “responsible for … conveying streaming content”, and contentId as “typically the URL of the media”
• Google Cast — Supported Media — the receiver codec list, in which ALAC does not appear
• Google Cast — Discovery — the _googlecast._tcp.local service record, and sender and device on “the same WiFi network”
• RFC 6763 — DNS-Based Service Discovery — the service-name convention behind both _googlecast._tcp and Bonjour
• Digr — features and roadmap — Google Cast as the one implemented protocol; AirPlay, DLNA/UPnP, OpenHome and native speaker groups as longer-term items with the tier undecided; and cross-brand synchronised playback on the not-planned list
• AirPlay’s protocol specification is not public. Third-party AirPlay audio hardware is licensed through Apple’s MFi programme, and no wire format, transport, codec negotiation or clock-synchronisation detail is claimed here. No hardware was tested for this article and no timings were measured
